HZS270 Environmental-Protect Concrete Batching Plant/Tower

Tel:+86-371-65621392

Condition: New
Delivery port: Qingdao or Tianjin port, China
Payment term: L/C, T/T
Guarantee period: 12 months
Delivery time: 10-15 days after received deposit
Installation time: 20days

Product Details

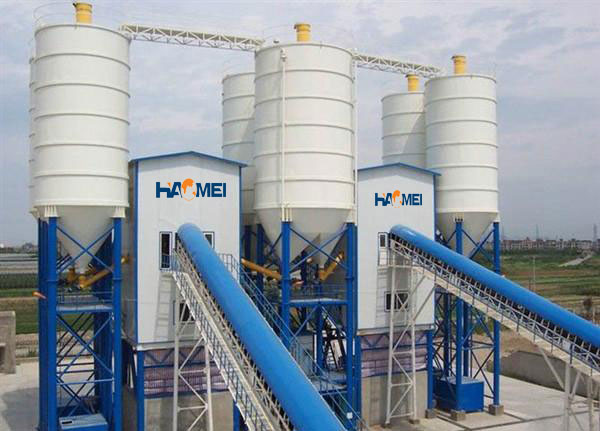

HZS270 Environmental-Protect ready mixed concrete batching plant

1. Capacity as 270m3/h

2. Adopts double shafts cement mixer

Main characters of HZS270

1. This production adopts combined structure and modular unit, and it is convenient to install and remove;

2. PLD4800 concrete batcher offers efficient and accurate measurement;

3. Water is flow-metering, simple and practical, highly accurate dosing

4. MAO4500 double-shaft compulsory concrete mixer for Mixing and aggregate lifting system.

5. Powder lot is electronic measured, highly accurate dosing;

More details about HZS270 concrete batching plant

On the basis of combining advantages of various foreign plant & stations and advanced technology, HZS270 Environmental-Protect batching plant/tower adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adpots PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining. With fully-closed tower, aggregate conveying system and dedusting system can effectively reduce environmental pollution arising from dust and noise.

Technical parameters of this batching plant

Specification	Value
Productivity in theory(m3/h)	270
Mixer	MAO4500
Capacity of Mixer(m3)	4.5
Mixer Power(kw)	150
Discharge Height (m)	3.8(for customers choice)
Aggregate Bin (Quantity)	4
Aggregate Bin Capacity (m3)	4.8
Max. Weighing Value of Aggregate(kg)	1800
Max. Weighing Value of Cement(kg)	800
Max. Weighing Value of Water(kg)	1500
Max. Weighing Value of Additive (kg)	60
Aggregate Measuring Accuracy(%)	2
Water Measuring Accuracy(%)	1
Cement Measuring Accuracy(%)	1
Additive Measuring Accuracy(%)	1
Cement Silo	Optional
Cement Screw Conveyor	Optional
Cement Silo Capacity	Optional
Control Mode	Auto/Semi Control

haomei machinery company has been in this concrete field for many years, we have customers from all over the world, and we also can offer machines according to our customers' requirements. except stationary type plant, we also offer mobile type, wet type, belt type, while with concrete mixer, truck and pump.

for these years, we have installed plants in many countries, like philippines, indonesia, malaysia these asian countries, and also including saudi these middle-east countries. so welcome to contact us if you need any of these.
