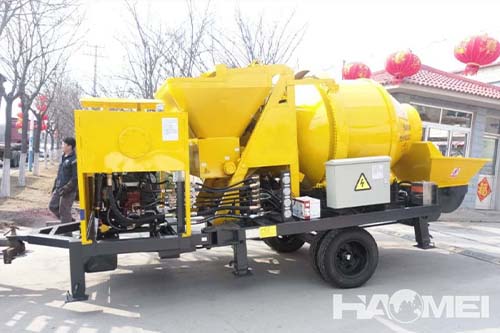

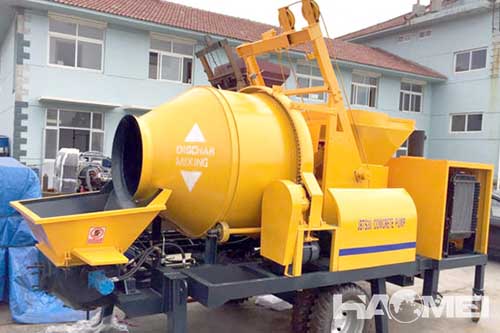

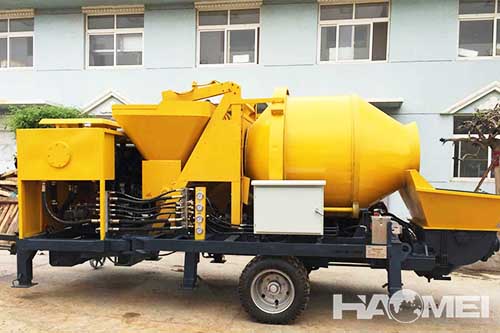

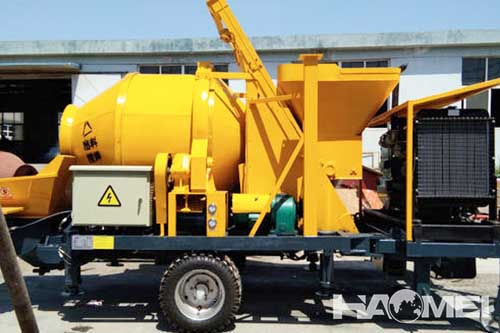

Concrete Mixer and Pump

Concrete mixer and pump is the combination of mixing system and pumping system. The hoisting system brings all the materials into mixing drum to mix. When the mixing is finished, the mixed concrete will be automatically discharged into the hopper for pumping. (During the Pumping process, the mixer continues to mix concrete). When pumping concrete, with the power provided by the hydraulic oil, the piston in the two main cylinders repeat the reciprocating movement, one cylinder forward, the other cylinder back. With the help of the swing cylinders, the S valve keep switching between the two concrete cylinders to achieve continuous pumping.

Technical parameters of concrete mixer and pump:

Items	Units	ABJZ30C	ABJZ40C	ABJS40C-JS500	ABJS40C-JS750
Max. theo. concrete output(L./H)	M3/h	30	40	40	40
Mixer rated feed capacity	m3	0.56	0.56	0.56	0.56
Mixer rated discharge capacity	m3	0.35	0.45	0.5	0.75
Max.concrete pumping pressure(H./L.)	MPa	10	10	8	8
Distribution valve type		S  Valve
Concrete cylinder diameter×stroke	mm	Φ140×1000	Φ180×1000	Φ200×1000	Φ200×1000
Hopper capacity	L	400	400	400	400
Outlet diameter	mm	Φ150	Φ150	Φ180	Φ180
Diesel engine model			Weichai	Weichai	Weichai
Electrical engineering power	KW	37	82	129	129
Rotate speed	r/min	1480	2200	2200	2200
Circuit type		Open circuit
Pumping system pressure	MPa	26	32	32	32
Mixing system pressure	MPa	6-8	6	6	6
Capacity of oil tank	L	260	350	350	350
Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/300	120/500	120/500	120/500
Max. aggregate diameter	mm	Slick/scree:10/20	Slick/scree:40/50	Slick/scree:40/50	Slick/scree:40/50
Inside diameter of delivering pipe	mm	Φ100	Φ125	Φ125	Φ125
Dimensions：length×width×height	mm	4500x1750x1600	600x2300x3150	7500x2300x3150	7500x2300x3150
Total weight	kg	3000	4500	5000	5500

Main Features of Small Concrete Mixer and Pump

1. Adopt world-level advanced technology.
2. Combination of the mixer and pump requires less working space.
3. All-hydraulic pumping system ensures stable operation.
4. Equipped with wired remote control, which makes it more convenient to operate.
5. Diesel engine ensures normal operation without electricity.

Advantages of Concrete Mixer And Pump Machine:
1. It has wide application and can meet many different requirements of construction sites.
2. The concrete mixing and pumping machine can save cost and promote production efficiency.
3. Self-centralized lubricating system ensures the effective lubricating for machine.
4. Easy operation, fine structure, advanced technology, long service life.
5. Easy maintenance, stable and continuous working, high-usage.

Our Perfect After-sales Service:
1. We will answer your email at the first time we have received your inquiry.
2. We will send expert to help you finish the installation as well as train your workers if you need.
3. We have professional after-sales service staff to help you to solve any problems immediately which you may meet after buying our machine.
4. We guarantee for you with lifelong maintenance at all times.
