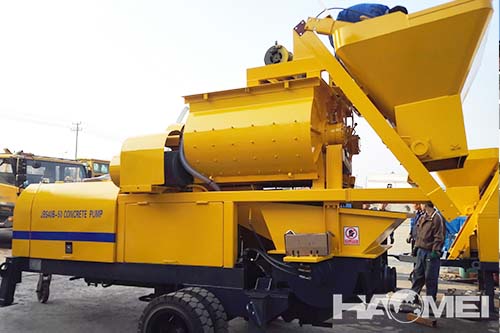

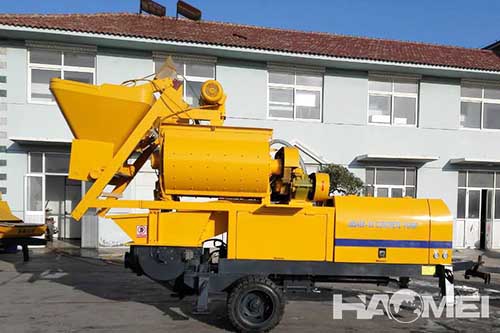

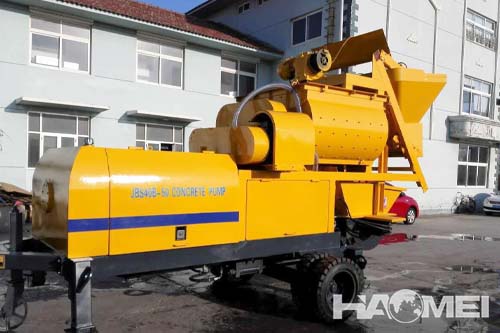

Concrete Mixer Machine with Pump

Concrete mixer machine with pump is a kind of concrete pumping machine, which is the combination of concrete pump and cement mixer, and it is a special kind of concrete trailer pump. With fully automatic construction operation system, mobile concrete pumping equipment has the function of feeding materials, mixing and high-pressure pumping. So concrete mixer machine with pump is characteristic of easy operation, stable performance and flexible movement.

Haomwi manufactures and supplies the most popular and advanced type concrete mixer pump for sale for over 20 years. We have a set of mature production chain. Hence, Haomei can provide the best cement pumping machine with high quality and low price at the same time. Haomei always give our customers the best discounts because Haomei believe that is a win-win choice for ourselves and our clients. Therefore, you can contact us if you are willing to know the concrete mixer pump price. Our discounts won’t disappoint you.


Technical parameters of concrete mixer with pump machine:

Items	Units	ABJZ30C	ABJZ40C	ABJS40C-JS500	ABJS40C-JS750
Max. theo. concrete output(L./H)	M3/h	30	40	40	40
Mixer rated feed capacity	m3	0.56	0.56	0.56	0.56
Mixer rated discharge capacity	m3	0.35	0.45	0.5	0.75
Max.concrete pumping pressure(H./L.)	MPa	10	10	8	8
Distribution valve type		S  Valve
Concrete cylinder diameter×stroke	mm	Φ140×1000	Φ180×1000	Φ200×1000	Φ200×1000
Hopper capacity	L	400	400	400	400
Outlet diameter	mm	Φ150	Φ150	Φ180	Φ180
Diesel engine model			Weichai	Weichai	Weichai
Electrical engineering power	KW	37	82	129	129
Rotate speed	r/min	1480	2200	2200	2200
Circuit type		Open circuit
Pumping system pressure	MPa	26	32	32	32
Mixing system pressure	MPa	6-8	6	6	6
Capacity of oil tank	L	260	350	350	350
Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/300	120/500	120/500	120/500
Max. aggregate diameter	mm	Slick/scree:10/20	Slick/scree:40/50	Slick/scree:40/50	Slick/scree:40/50
Inside diameter of delivering pipe	mm	Φ100	Φ125	Φ125	Φ125
Dimensions：length×width×height	mm	4500x1750x1600	600x2300x3150	7500x2300x3150	7500x2300x3150
Total weight	kg	3000	4500	5000	5500

Features and Advantages of Concrete Mixer Pump machine:

1, Portable movement of the mobile concrete pump can reduce site-switching time and improve working efficiency.
2, Imported oil pump of Haomei pump mixer provides enough power for the smooth operation and transportation of concrete.
3, PLC control system makes the operation of the machine be safe, convenient and easy.
High mixing speed of the pump mixer can meet the big demand of any construction projects and works.
4, With professional producing and innovating team, we have committed ourselves to provide customer-welcomed cement mixer pump with easy operation, high working efficiency, reasonable price and long service life. Our cement mixer and pump can be motored by diesel or electric, which enables it having extensive application.
5, In addition, Haomei also offers other types of concrete pumps for sale, such as diesel concrete mixer with pump, concrete trailer pump for sale, electric concrete pump, mobile concrete pump for sale and so on. Please feel free to send us a message if you need a concrete pump, and please trust us that we will offer high quality machine with reasonable price to users all around the world.
