C3 Concrete Mixer Pump

C3 concrete mixer pump is a small concrete pump that uses a fully automated construction operating system, integrating feeding, mixing and high-pressure pumping.

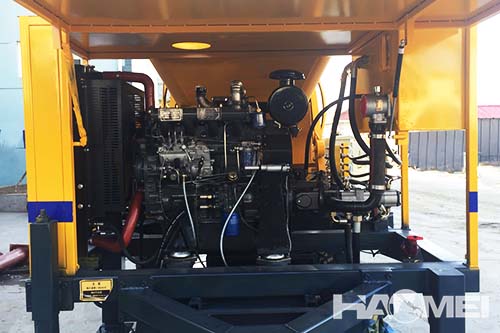

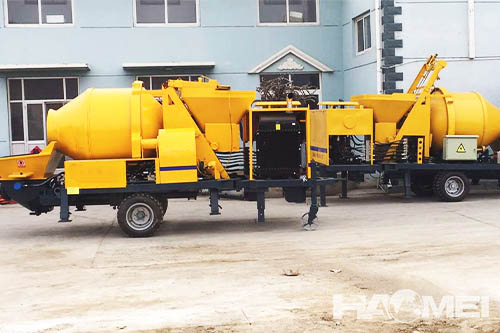

The c3 diesel concrete mixer pump is a full hydraulic diesel version. It is driven by a diesel engine and is no longer restricted by the site without power. This drum type trailer concrete mixer pump consists of a drum type mixing system and an imported parts pumping system.Because there is no car chassis, so it needs to be towed, and it is suitable for concrete construction in rural areas such as self-built houses, water conservancy dykes, pavement construction, port terminals, etc.

Technical parameters of C3 diesel concrete mixer pump:

Items	Units	ABJZ30C	ABJZ40C	ABJS40C-JS500	ABJS40C-JS750
Max. theo. concrete output(L./H)	M3/h	30	40	40	40
Mixer rated feed capacity	m3	0.56	0.56	0.56	0.56
Mixer rated discharge capacity	m3	0.35	0.45	0.5	0.75
Max.concrete pumping pressure(H./L.)	MPa	10	10	8	8
Distribution valve type		S  Valve
Concrete cylinder diameter×stroke	mm	Φ140×1000	Φ180×1000	Φ200×1000	Φ200×1000
Hopper capacity	L	400	400	400	400
Outlet diameter	mm	Φ150	Φ150	Φ180	Φ180
Diesel engine model			Weichai	Weichai	Weichai
Electrical engineering power	KW	37	82	129	129
Rotate speed	r/min	1480	2200	2200	2200
Circuit type		Open circuit
Pumping system pressure	MPa	26	32	32	32
Mixing system pressure	MPa	6-8	6	6	6
Capacity of oil tank	L	260	350	350	350
Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/300	120/500	120/500	120/500
Max. aggregate diameter	mm	Slick/scree:10/20	Slick/scree:40/50	Slick/scree:40/50	Slick/scree:40/50
Inside diameter of delivering pipe	mm	Φ100	Φ125	Φ125	Φ125
Dimensions：length×width×height	mm	4500x1750x1600	600x2300x3150	7500x2300x3150	7500x2300x3150
Total weight	kg	3000	4500	5000	5500

Main feature of C3 concrete mixer pump are:

1, Strong conveying capacity:
The mixer pump is pumped 80 meters vertically and the horizontal pumping is 400 meters!
2, Efficient hydraulic system:
Purchase imported Kawasaki pump, using advanced hydraulic system.
3, Construction is safer:
It is very dangerous for traditional equipment to pump above the 4th floor, and Haomei concrete mixer with pump –easy to pump 20 floors!
4, High degree of automation:
The degree of automation of the c3 concrete mixer pump is high, and the whole feeding, mixing and pumping process can be easily completed by 4-5 people!
5, Integrated design:
The integrated design of the C3 diesel concrete mixer pump makes the equipment occupy small space and flexible and convenient to move!
6, Quality Assurance:
As an industry standard setter, the production process is strictly regulated, and the failure rate is minimized!
