Self Propelled Concrete Mixer With Self Loading Function

Self propelled concrete mixer with self-loading function are modern engineering equipment that integrates automatic loading, mixing, transporting and unloading functions. They are widely used on construction sites and in road construction and offer significant advantages.

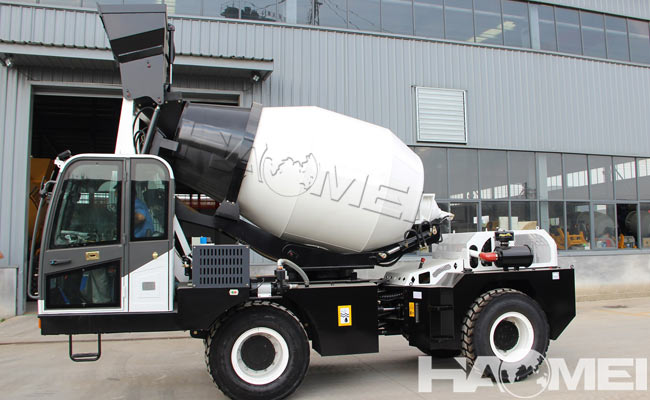

Self propelled concrete mixer with self-loading function

Technical Parameters of Self Propelled Concrete Mixer With Self Loading Function:
- Mixer Tank Capacity: Common sizes include 2.6, 3.5, 4.2, and 5 cubic meters. For example, a concrete mixer drum with a capacity of 5 cubic meters actually mixes 3 cubic meters.
- Engine Power: Engine power varies depending on the vehicle model. The Yuchai YC4A115Z-T20 engine boasts an 85kW power output.
- Speed: Typical low speed is 0-9 km/h, while high speed is 0-20 km/h or 0-25 km/h.
- Representative Models
4.0 Self Loading Concrete Mixer Truck: Utilizing a highly efficient hydrostatic transmission system and four-wheel drive, the vehicle boasts an hourly production capacity of approximately 12-14 cubic meters. It is equipped with a high-precision weighing system with an accuracy within ±3%. It also features a chute-type mixing tank design, which improves mixing efficiency by over 10% compared to similar products.

Working Principle of Self Propelled Concrete Mixer With Self Loading Function:
- Loading: Raw materials such as sand, gravel, and cement are loaded into the mixing tank using the vehicle's built-in loading device, such as a bucket or conveyor belt.
- Mixing: The mixing tank rotates continuously while driving, using internal mixing blades to mix the raw materials with water into a uniform concrete.
- Transportation: The self loading concrete mixer transports the concrete to the designated location, keeping the mixing tank rotating during transportation to prevent the concrete from solidifying.
- Unloading: Upon arrival at the destination, the mixing tank is tilted using a hydraulic system to unload the concrete.

Key Features of Self Propelled Concrete Mixer With Self Loading Function:
- High Level of Automation:
The self propelled concrete mixer is equipped with an automatic loading system, allowing it to load raw materials such as sand, gravel, and cement directly from a stockpile or silo without the need for additional equipment. It also features an automatic mixing function to ensure uniform mixing of the concrete.
- Multi-Functional:
The vehicle integrates loading, mixing, transportation, and unloading functions, reducing reliance on other equipment and enabling a one-stop service for the entire concrete production and delivery process.
- Highly Flexible:
Suitable for complex terrain and confined spaces, its four-wheel drive chassis and tight turning radius enable flexible operation even on small construction sites or in remote areas.
- Energy-Efficient:
Utilizing advanced hydraulic and engine technologies, it reduces energy consumption while improving efficiency.
- Easy to Operate:
Equipped with an intelligent control system, operators require minimal training. Select models also feature an ergonomically designed pilot joystick, allowing all major operating actions to be controlled from a single handle.
- Environmentally Friendly:
The enclosed mixing tank design reduces concrete leakage and dust pollution, meeting environmental standards.

Typical Applications of Self Propelled Concrete Mixer With Self Loading Function:
- Rural Construction:
Small models with a capacity of 2.0-3.5 cubic meters can meet the needs of single-family housing construction, producing 15 m³ of concrete per hour at a cost 40% lower than commercial concrete.
- Municipal Engineering:
For applications such as road hardening and trench backfilling, the equipment can cut and fill as needed, reducing secondary transportation pollution.
- Emergency Repair:
In situations such as bridge collapse and earthquake rescue, the equipment can quickly arrive at the site and independently produce concrete, shortening repair time.

Self propelled concrete mixer with self-loading function, through its highly integrated design, automates the entire concrete production process, surpassing traditional solutions in efficiency, cost, and environmental performance. When purchasing, consider the project scale, terrain conditions, and budget, prioritizing brand manufacturers with proven technology and comprehensive service.
