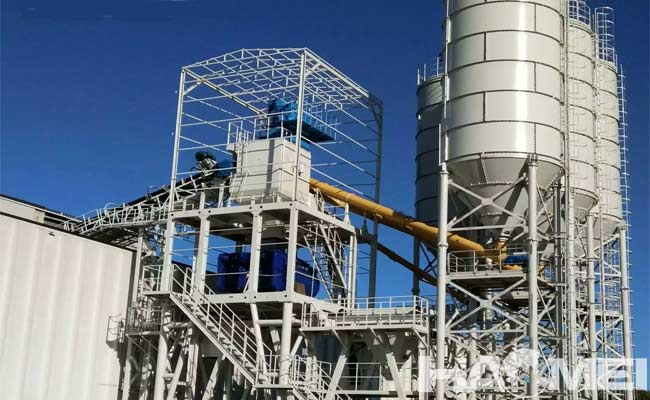

HZS precast concrete batch plants consists of a feeding belt conveyor, a screw conveyor, a concrete mixing machine, a concrete batching machine etc. The precast concrete batching plant has a installed capacity of approximately 200 kW and a mixing capacity of 25-240 m3/h. The model of precast concrete plant is corresponds to the mixing capacity, the HZS25 precast concrete plant has the capacity of 25m3/h and the HZS240 precast concrete plant has the capacity of 240m3/h.



For produce precast concrete, the mixing capacity of precast concrete batching plant is generally high, for large scale precast concrete batch plant, the equipment can composed of 2 concrete mixers to meet the needs of different concrete requirements. The main energy consumption of the concrete mixing system is electricity. The concrete mixing process of HZS concrete batching plant is to transport the pile yard gravel and sand to the belt conveyor by the forklift. The belt conveyor transports the gravel and the sand to the concrete batching machine silo respectively. The concrete batching machine is composed of a plurality of small hoppers, respectively storing the gravel and the sand, other dust, cement and other raw materials of ready-mixed concrete, the cloth machine open the warehouse door according to the computer control, according to the concrete formula requirements, stone, sand and other raw materials are put into the weighing bucket weighing one by one to the standard quota amount, and then it is put into the concrete mixer of the precast concrete batch plants, and an appropriate amount of water is added and stirred by the concrete mixing machine to be the finished precast concrete product, and then transported by the concrete mixer truck.
