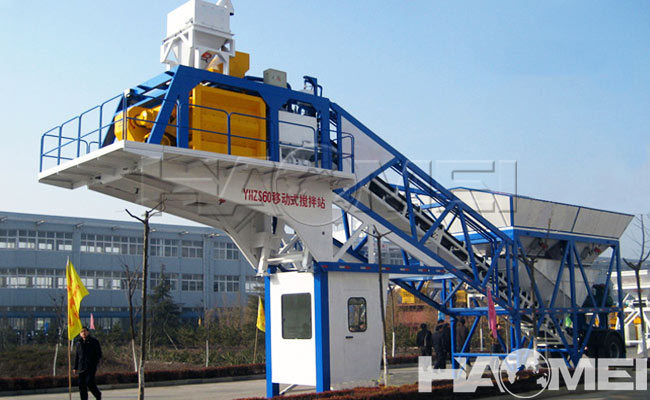

The YHZS mobile mini concrete batching plant for sale integrates all the necessary functions for material storage, weighing, conveying, mixing, unloading and a fully automated control system into a single trailer-mounted unit. This unit offers flexible mobility and quick and easy assembly and disassembly, making it ideal for rapid concrete production at various construction sites.

Main Components of Mobile Mini Concrete Batching Plant:
- Mixer: The YHZS mini mobile concrete batching plant is typically equipped with a forced twin shaft mixer, capable of effectively mixing concrete of varying mix proportions.
- Raw Material Storage System:
Hopper: This unit stores raw materials such as cement, sand, and gravel, typically designed with multiple compartments for separate storage and retrieval.
- Conveyor: This unit typically uses a belt conveyor or screw conveyor to transport raw materials from the hopper to the mixer.
- Water Supply System: This system includes a water tank and pump, supplying the water required for mixing.
- Control System: This system is equipped with a PLC controller and an operator panel, enabling automated control of the entire mixing process, ensuring stable and accurate production.
- Batching System: An electronic scale is used to accurately weigh various raw materials to ensure precise concrete mix proportions.

Technical Parameters of Mobile Mini Concrete Batching Plant:
The technical parameters of different YHZS mini mobile concrete batching plants vary. Taking the YHZS60 mobile concrete batching plant as an example,
Theoretical Production Rate: 60 m³/h
Measuring Range: Aggregate 3,000 kg ± 2%, Powder 700 kg ± 1%, Water 300 kg ± 1%, Admixture 30 kg ± 1%
Unit Power: 85 kW (excluding optional items)
Aggregate Silo Capacity: 2 x 11 m³ (Number of silos optional: 2-4)
Unit Weight: ≈ 23,500 kg (excluding optional items)
Dimensions: Operating: 17.7 m x 3.6 m x 8.2 m, Transport: 18.3 m x 2.4 m x 4.35 m

Features of Mobile Mini Concrete Batching Plant:
- Quick Assembly and Disassembly, Easy Relocation:
Except for external equipment such as the screw conveyor and cement silo, all wiring in the concrete batching plant remains intact. With a 30-ton crane, disassembly and relocation can be completed in one day. During installation, if the ground is flat and solid, no foundation is required, and production can begin on the same day. The plant is equipped with tires and a tow pin, allowing it to be towed at speeds of up to 60 km/h.
- Excellent Mixing Performance:
The forced twin-shaft mixer achieves uniform mixing in the shortest possible time. It can effectively mix dry, semi-dry, and plastic concrete, as well as concrete of various proportions.
- Precise Metering:
Electronic scales are used for measuring aggregates, cement, water, and liquid admixtures, ensuring high accuracy and precise proportioning. The high-precision microcomputer control system, equipped with a separate manual control, features ratio storage and automatic drop compensation.
- High-End Configuration and High Reliability:
Imported components are used for the main mixer reducer, metering sensors, and control system components, significantly reducing equipment failure rates and improving metering accuracy. The entire machine is computer-controlled and can be operated both automatically and manually, making operation simple and easy to master.

Application Areas of Mobile Mini Concrete Batching Plant
The YHZS mini mobile concrete mixing plant is widely used in:
- Small construction projects, such as residential buildings, villas, and commercial buildings.
- Infrastructure construction: Small projects such as roads, bridges and tunnels.
- Precast component production: Suitable for small precast component plants.
- Temporary construction sites: For projects requiring short-term construction, mobile concrete batching plants provide a flexible concrete production solution.

Purchasing Recommendations
When purchasing a YHZS mini mobile concrete batching plant in the market, consider the following:
- Manufacturer reputation: Choose a reputable brand or manufacturer to ensure equipment quality and after-sales service.
- Equipment configuration: Select the appropriate mixer model and batching system based on your actual needs.
- After-sales service: Understand the concrete batching plant manufacturer's after-sales service policy, including warranty and technical support.
- User reviews: Consult user reviews and feedback to help you make an informed choice.

The YHZS mobile mini concrete batching plant for sale, with its flexibility and efficiency, has become a vital piece of equipment in modern construction.
