What do you know about mobile concrete batching plant

The mobile concrete batching plant is a concrete mixing equipment developed according to the actual demands of users who need frequent transitions, short construction period and long construction line. It will focus the material storage, weigh, transport and stir, discharge and automatic control system on a trailing unit, mobile concrete batching plant not only have a complete function of the traditional concrete mixing plant, but also have convenient, flexible removable, simple storage and other unique advantages.

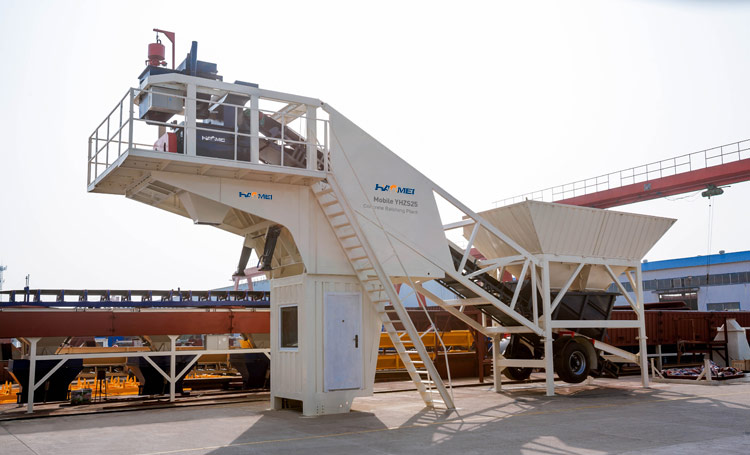

mobile concrete batching plant

The composed parts of mobile concrete batching plant are as follows:
1. Host chassis: cantilevered stirring host chassis, the chassis contains a trailer truck trailer pin, parking legs, the mixer, cement and water admixture measurement are installed on the chassis.
2. Control room: the control room is installed on the bottom of the host chassis, the automatic control system is in it, the control system is the same as stationary concrete batching plant, on the working status, the control room as the the front support point, in the transfer, the control room stored in the bracket, all of its control lines do not need demolition.
3. Aggregate Ingredient Measure: This system is located in the back of the plant, the upper part is the aggregate (sand, stone) storage hopper, storage hopper can be divided into 2 or 4 cells, and set up higher plate to increase the storage capacity, Pneumatic in turn open the door operation, aggregate measurement use a variety of materials accumulated measurement. The bottom is equipped with a walking leg and a working frame leg.
4. Belt Conveyor: The belt conveyor rack is a truss structure that connects the host chassis and the aggregate dosing frame, and equipped with belt rack. The main frame, the belt frame and the batching frame are combined to form the main structure of the whole mobile concrete batching plant.
5. Peripheral components: the cement warehouse and screw conveyor, peripheral components are the whole parts,do not need dismantling whether work or transport time, so they can overall transport and disassembly.
6. Mixing host: adopt JS-type forced concrete mixer, can be quickly and evenly complete the mixing of fluidity and dry concrete.
