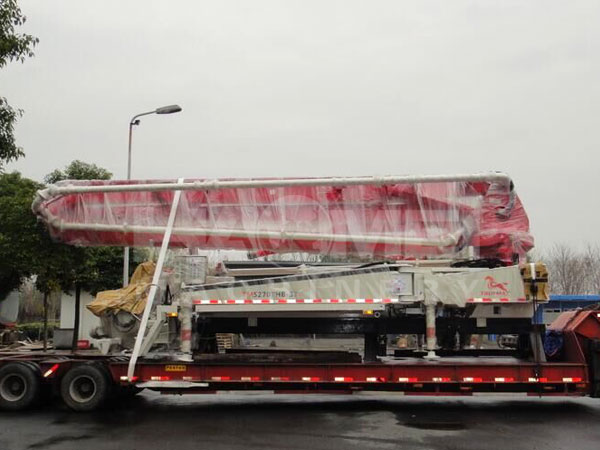

24 m concrete boom pump characteristics

24 m concrete boom pump characteristics
Haomei concrete pump truck combines high reliability, economy, safety and durability in one, transfer case PTO power sharing technology, hydraulic commutation for the integration of intelligent transportation technology. Boom telescoping flexible and efficient, small outrigger footprint, easy to move the vehicle. High outlet pressure pumping large square, is the ideal high-speed rail construction equipment, beam field, bridges, tunnels, airports, ports, construction and other indoor occasions.

1, Dongfeng EQ1168GSZ4D special truck chassis, elegant and chic appearance shape, ride comfort, power (220HP) strong economic fuel-efficient, reliable and durable.

2, vehicle width 2350mm, front legs expanded width 4550mm, rear leg developed width 2280mm, front and rear vertical leg span 6030mm. Another especially suitable for high-speed rail beam field, bridges, tunnels, airports, ports, interior construction and other occasions.

3, powered by a transfer case PTO power sharing technology, reliable performance, and is equipped with automatic throttle, fuel economy is good.

4, hydraulic components Germany Rexroth pumps, valves. The hydraulic system uses pressure sensors control, hydraulic reversing shortening the commutation time, control of the pump in response to rapid change in the process, reduce energy consumption, improve system efficiency. The amount of pumping party has stepless adjustment function can be applied to different pumping volume requirements.

5, the control system uses PLC control, the main electrical components used Siemens, LG, Schneider and other brand name products. Pumping speed can be freely adjusted in a fixed range, to meet the requirements of the actual working conditions, to achieve the purpose of saving fuel consumption. At the same time the system uses color touch screen display, real-time display a variety of information systems, including state of the engine speed, pump-time, and the number of pumping system is located. At the same time a part of the system fails, by collecting and judging information will be immediately on the touch screen display fault content, and display processing program, you can tell the user how to solve the problem immediately, to ensure the smooth pumping work.

6, through nearly all operations can achieve control and wireless remote control, two separate operating devices to ensure reliable and safe.

7, the use of S-type valve, hard alloy glasses plate and cutting ring, and is equipped with rubber spring end clearance can automatically compensate to ensure good sealing performance.

8, stirring energy forward reverse, but also for the speed of operation, can be lifted aggregate stuck phenomenon.

9, with 8Mpa high-pressure cleaning systems, vehicle cleaning quick and easy.

10, material and concrete cylinders were shaking centralized grease lubrication, lubrication pumping it. Effectively improve the service life of wearing parts.
