Portable concrete mixer plant 25m3/h

Yhzs25 mobile portable concrete mixer plant is a simple batching plant with low cost and mixing capacity of 25m3/h. It adopts double horizontal shaft type compulsory concrete mixer and full computer centralized control system. The price of yhzs25 portable concrete batching plant is low and the quality is excellent. We are ISO9001 certified high-quality manufacturers. The mobile YHZS25 small concrete batching plant is the most practical model with the least cost in small towns.


portable concrete mixer plant

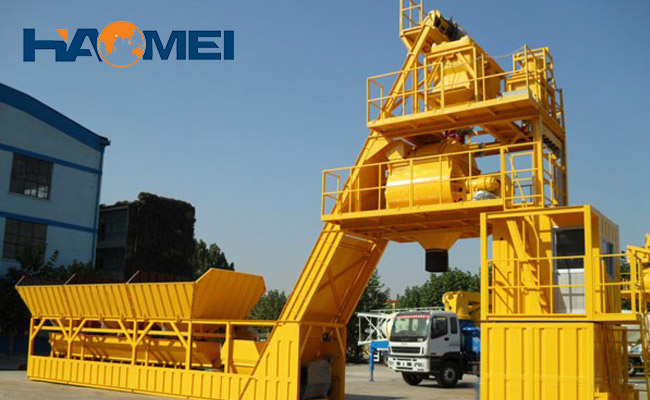

The mobile yhzs25 small concrete mixing plant is equipped with a JS500 double horizontal shaft forced concrete mixer with a power of 60kW. The aggregate system adopts pld800 concrete batcher with accurate measurement, each set of cement weighing and water weighing. The cement bin, screw conveyor, belt conveyor and full computer centralized control system are composed. The concrete mixing machine of portable concrete mixing plant has its own hopper. The hopper can be directly used for feeding. It is simple and fast, saves the belt conveyor and reduces unnecessary device.


The theoretical output of yhzs25 mobile concrete mixing plant is about 25 cubic meters per hour, the working cycle time is 72 seconds, the discharge height is between 1.5-3.8 meters, and the production can be carried out for 8 hours every day. The ideal output of portable concrete mixer plant can reach 70000 cubic meters of concrete one year, which is widely used in small town construction projects and small construction sites, such as second floor buildings, road construction, small tunnels, commercial concrete production plants And other infrastructure construction.
