The process of mobile concrete batch plant automatic control is metering conveying feeding mixing discharging. Each process link is completed by corresponding equipment components. The actions of the mobile concrete batching plant equipment are all managed by the control system, and the operation status of each part is displayed on the computer screen of the control system. The logic control of the system is mainly in the charge of PLC, which can receive the input signals of various switches, buttons, contactor States and the commands of the upper computer, and realize the control of various actions, including the start and stop of the batching instrument, the sequential start and stop control of the motor, the interlock control and the protection control, etc.

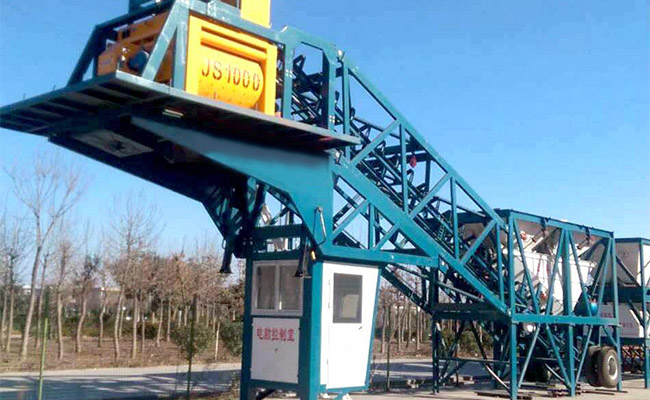

Structure synthesis of mobile concrete batching plant are:
1. Chassis of the main engine: the chassis of the mixing main engine is in the form of cantilever, which includes the traction pin of the towing truck and the parking leg; the measurement scale of the mixer, cement and water admixture is placed on the chassis; the surrounding is equipped with the inspection walking platform, handrail, etc.
2. Control room: the control room is at the bottom of the chassis of the mobile concrete bathing plant, which is equipped with the full-automatic control system of the concrete batch plant. The control system is the same as that of the stationary concrete batch plant. In the working state, the control room serves as the front support point of the whole batching plant. During the transfer transportation, the control room is folded up and stored in the air in the bracket; all control lines do not need to be disassembled.
3. Aggregate batching and metering: this system is located at the back end of the whole station, and the upper part is aggregate (sand, stone) storage hopper, which can be divided into 2 or 4 grids. A heightening plate is set to increase the storage capacity, and the pneumatic door is opened in turn. Aggregate metering is a multiple material cumulative metering method.
4. Belt conveyor frame: the frame is a truss structure connecting the chassis of the main machine and the aggregate batching frame, and is equipped with a belt frame;
5. Peripheral parts: they are cement bin and screw conveyor. The peripheral parts are integral parts no matter in operation or transportation, so they can be transported and disassembled as a whole without disassembly.
6. Mixing machine: JS type forced concrete mixer is generally used in mobile concrete batch plant automatic control, which can quickly and evenly mix the fluidity and dry hard concrete.
