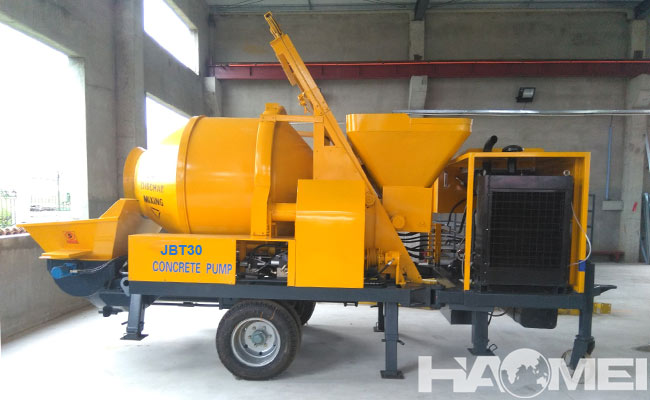

The jbt30 concrete mixer with pump supplied by Haomei Machinery has output of 30m3/h, the delivery pressure is 9Mpa. The horizontal distance through the pipeline can reach 200 meters, and the pumping height can reach 70 meters high, which is equivalent to the 18-story roof directly through the concrete mixer and pump to complete the pouring. During the pumping process, safety risks are greatly reduced, and the pouring quality is stronger. Therefore, urban construction bases now choose more useful concrete mixer with pump for construction, especially in the construction of new rural construction, highway construction, tunnels, water conservancy and hydropower and other projects, the first choice is the mixing trailer pump.

The mixer of jbt30 concrete mixer with pump adopts double motor to stir, which is fast and even. The grinding wheel is used to rotate, which is stable as a whole. The vibration device is installed and the blanking is complete. The delivery pump adopts double cylinder full hydraulic pumping system, which is stable and reliable in performance. All hydraulic fittings of concrete mixer with pump jbt30 are of famous brands at home and abroad, with reliable quality. Power system adopt famous brand motor at home and abroad. The main oil pump is Kawasaki series. Lubrication system using five point separate lubrication to protect key parts from wear.

The technical parameter of jbt30 concrete mixer with pump are:


The performance features of jbt30 concrete mixer with pump are as follows:
1. The fuselage design is dexterous, the operation is simple, the movement is convenient and flexible, and the performance is stable;
2. It has its own boom for material distribution and short auxiliary time, so as to ensure that the concrete mixer with pump machine can work safely under harsh conditions;
3. The concrete mixer and pump adopts double cylinder full hydraulic pumping system, which is convenient for cloth distribution, fast pumping speed and high working efficiency;
4. High degree of automation, can be operated by one person, equipped with remote control, easy to operate;
5. The secondary hydraulic system greatly improves the overall reliability of the concrete mixer with pump, with good maneuverability and high equipment utilization rate;
6. The vehicle design integrates economy, reliability, safety and durability.
