SICOMA Concrete Mixers 3.0m3

Tel:+86-371-65621392

Condition: New
Delivery port: Qingdao or Tianjin port, China
Payment term: L/C, T/T
Guarantee period: 12 months
Delivery time: 10-15 days after received deposit
Installation time: 20days

Product Details

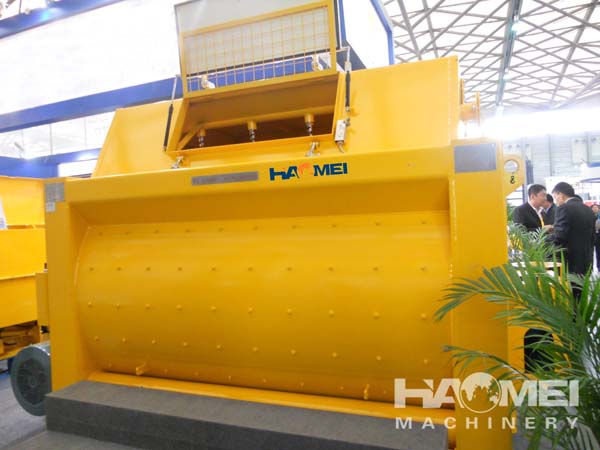

Specification SICOMA Concrete Mixer 3.0m3

The art in concrete mixing is to make a batch of concrete quickly and completely. The Sicoma 's powerful compulsory spiral mixing action throws particles from each side of the mixer towards the center, where they combine; the water is forced through powerful jets into the mix, where it is absorbed completely, allowing the cement slurry to coat all the aggregate particles uniformly, forming the strongest concrete. Because the mixing occurs in free space above the mixer floor, the wear on the liner plates is very low; the outer 70% of the lined surface is rarely touched by concrete. Only the rows of tiles close to the discharge door will need replacement, and you'll be surprised at how long they last.

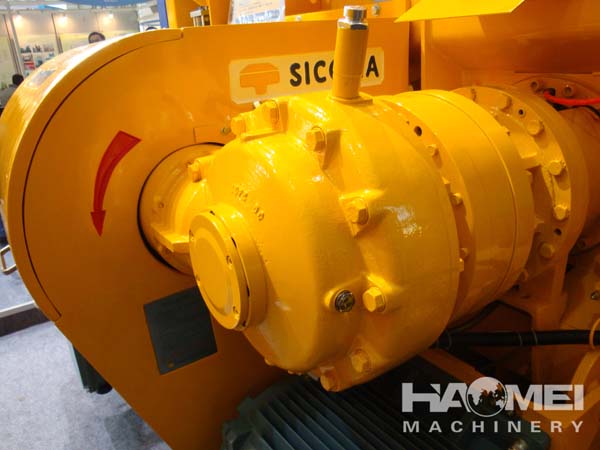

The Sicoma 's features go farther than many other mixers of its class. Its strong frame, triple shaft seals, more efficient gear reducers and electronic alarm unit as standard equipment mean that you have peace of mind. And our 5 year warranty shows you that we are very confident in its reliability!

The Sicoma twin shaft concrete mixer was designed in haomei and it has been refined to give you the outstanding product that you see today. The Sicoma series heavy duty mixers are the most widely used twin shaft models in the world today; over 6000 in use, worldwide, in ready-mix, precast, block, paver and dam applications. These mixers produce well over 1 million cubic yards of concrete every day. Their compact size allows them to be retrofitted into existing plants, in most cases doubling throughput without the need for two mixers and splitting of material feeds.

Feature SICOMA Concrete Mixers 3.0m3

1.Air purged multi seals to enhance bearing life and effectively avoid slurry leakage.

2.Unique monitoring system to monitor the running conditions of gearbox, hydraulic door opening and lubrication pump.

3.Automatic multi pump units for shaft lubrication, special pump pin unit design. No more grease distributor maintenance trouble.

4.Multi pipes water spraying system to ensure fast and thorough mixing.

5.Optional weighing system, high pressure cleaning system and microwave moisture monitoring system.

6.Heavy duty design, stable operation.

7.Dam work models for oversize aggregated maximum size 180mm, equipped with wearable linings 20mm thickness and high strength blades.

Techinical parameters of best selling concrete mixing machine

Specification	Value
Discharging Volume(L)	3000
Charging Volume(L)	4500
Mixer Capacity(m3)	3.0
Lubrication System(Brand)	Choosed
Reducer(Brand)	Choosed
Aggregate Size(mm)	60/80
Aggregate Category(Quantity)	4
Working Circle(S)	60
Mixer Motor Power(KW)	2x55
Mixing Speed(r/min)	35.5
Mixing Blade(Quantity)	2x9
Lifting Motor Power(KW)	25
Pump Motor Power(KW)	3
Weight(KG)	9200
Dimensions(mm)	2680x3830x2175
