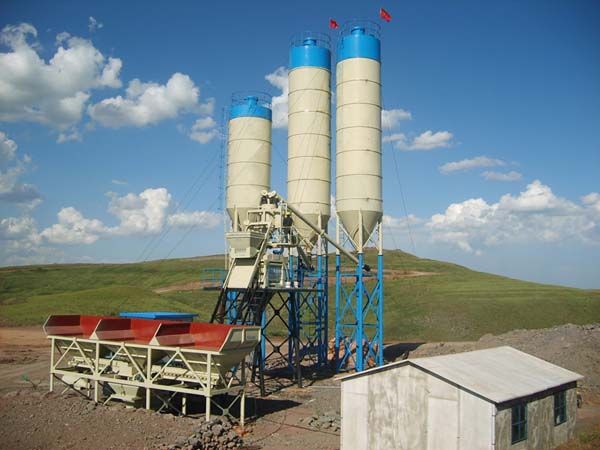

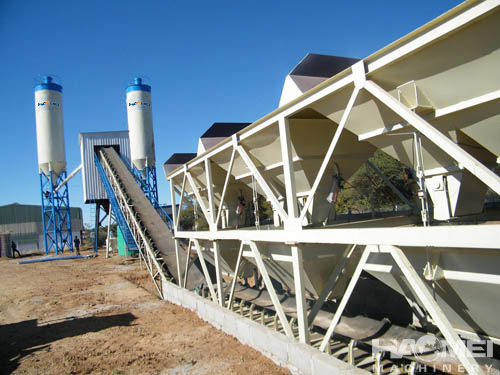

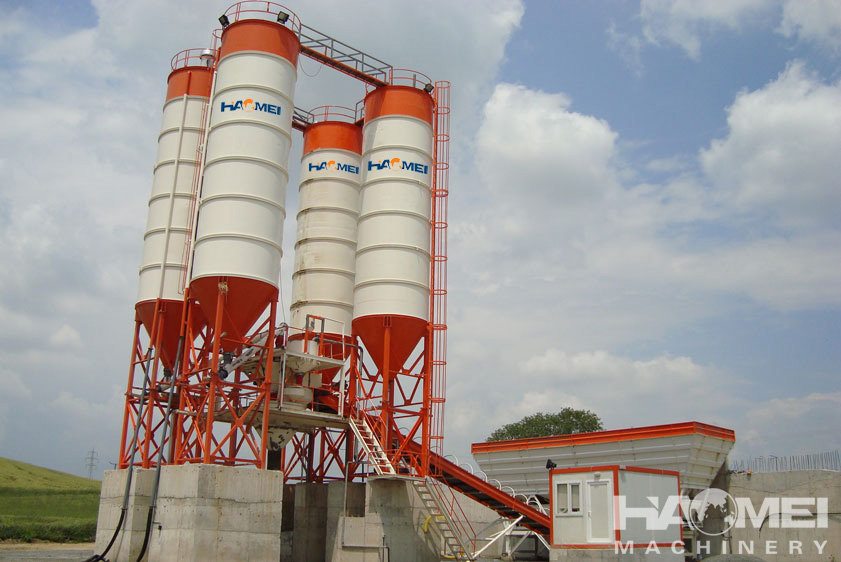

HZS60 Concrete Batching Plant

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details


HZS60 small concrete batching plant price

It is mainly used in mixing and architectural fields to make concrete for real-estate buildings, bridges, overpass, port terminals, dam construction and prefabricated building, other places of concrete construction and building highway, urban road, airport runway paving construction sites and so on. Compared with HZS50 price of concrete batching plant, this professional concrete batching plant belongs to belt type to deliver the materials, and it is commercial ready mix concrete batching plant for sale.


Features of commercial HZS60 concrete batching plant

1.Easy to operate with man-machine interface;

2.Great working performance which can be suitable for any bad situations;

3.Have a long working life with a environmental standard;

4.Mixing and aggregate lifting system adopt JS1000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;

5.Aggregate batching system adopts PLD1600 concrete batcher which offers efficient and accurate measurement;

6.Continous working with short mixing time, big capacity, can be suitable for larger engineering construction;

      HZS60 CONCRETE BATCHING PLANT



HZS60 ready mixed concrete batching plant components

1. aggregate supply batching system: general use PLD1600 concrete batching machine, aggregate storage, door openers, aggregate weighing system, aggregate delivery system, improve the system aggregate, aggregate excess storage systems;

2. cement supply system: cement silo, screw conveyor, cement weigh hopper, cement weighing device;

3. admixtures supply system: screw conveyor, admixture weighing bucket, admixtures weighing device;

4. water supply system: Water tank weighing, supply pumps, pressure pumps, water weighing device, sprinkler;

5. additive supply system: additive weighing boxes, supply pumps, pressure pumps, additive weighing device;

6. mixing system: motor, reducer, JS1000-type twin-shaft compulsory mixer;

7. control system: control room air conditioning, industrial computer, control cabinets, display instruments, panels, operation platform;

Technial parameters of HZS60 concrete batching plant



Specification Value
Productivity in theory(m³/h) 60
Mixer JS1000
Capacity of Mixer(m3) 1
Mixer Power (kw) 37
Discharge Height (m) 3.8(for customers choice)
Aggregate Bin (Quantity) 3
Aggregate Bin Capacity (m3) 1.6
Max. Weighing Value of Aggregate(kg) 1000
Max. Weighing Value of Cement(kg) 800
Max. Weighing Value of Water(kg) 350
Max. Weighing Value of Additive (kg) 30
Aggregate Measuring Accuracy(%) 2
Water Measuring Accuracy(%) 1
Cement Measuring Accuracy(%) 1
Additive Measuring Accuracy(%) 1
Cement Silo Optional
Cement Screw Conveyor Optional
Cement Silo Capacity Optional
Control Mode Auto/Semi Control
