HZS60 concrete mixing station
- Condition: New
- Delivery port: Qingdao or Tianjin port, China
- Payment term: L/C, T/T
- Guarantee period: 12 months
- Delivery time: 10-15 days after received deposit
- Installation time: 20days

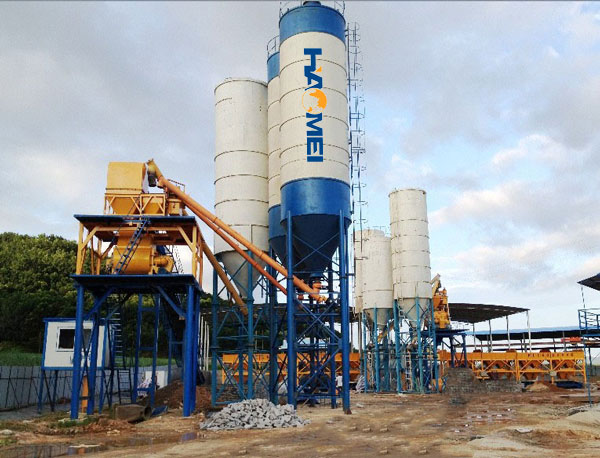

HZS60 concrete mixing station
Master the use of forced type twin shaft mixer, can produce plastic, dry and so on many kinds of concrete, reliable quality. Aggregate using a single measurement, cement, water, additives are used weighing hopper weighing, accurate measurement, centralized computer control, easy to operate, easy to adjust, reliable. Aggregate use of belt feeding on the way. Electrical components, reliable performance, high production power, applicable to the field of mass concrete production.
High quality mixing performance of HZS60 batching plant
Mixing console with double horizontal shaft forced, short mixing time, quick discharging and mixing, high production efficiency, for dry, rigid, plastic and various ratio of concrete can achieve good mixing effect. The special treatment of the wear resistant material for the mixer and the mixing blades, the unique shaft end support and seal type greatly improve the service life of the main engine.
HZS60 concrete mixing station comfortable operating room
Fully enclosed, with air conditioning control room greatly improve the operator's comfort, reduce the labor intensity of the operator.
Technial parameters of HZS60 concrete batching plant
Specification | Value |
---|---|
Productivity in theory(m³/h) | 60 |
Mixer | JS1000 |
Capacity of Mixer(m3) | 1 |
Mixer Power (kw) | 37 |
Discharge Height (m) | 3.8(for customers choice) |
Aggregate Bin (Quantity) | 3 |
Aggregate Bin Capacity (m3) | 1.6 |
Max. Weighing Value of Aggregate(kg) | 1000 |
Max. Weighing Value of Cement(kg) | 800 |
Max. Weighing Value of Water(kg) | 350 |
Max. Weighing Value of Additive (kg) | 30 |
Aggregate Measuring Accuracy(%) | 2 |
Water Measuring Accuracy(%) | 1 |
Cement Measuring Accuracy(%) | 1 |
Additive Measuring Accuracy(%) | 1 |
Cement Silo | Optional |
Cement Screw Conveyor | Optional |
Cement Silo Capacity | Optional |
Control Mode |
Auto/Semi Control |
