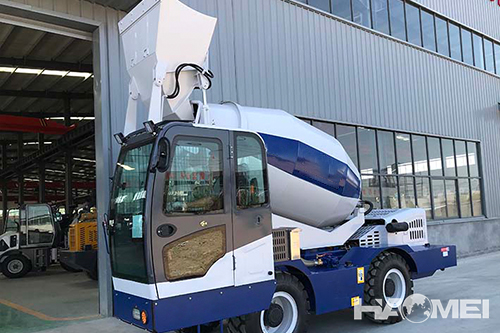

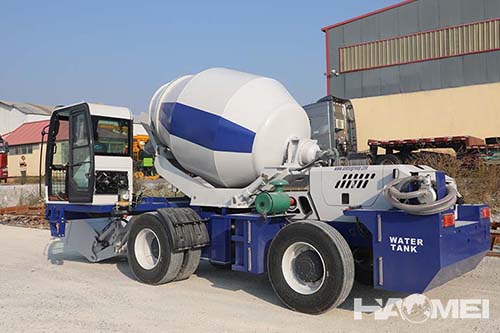

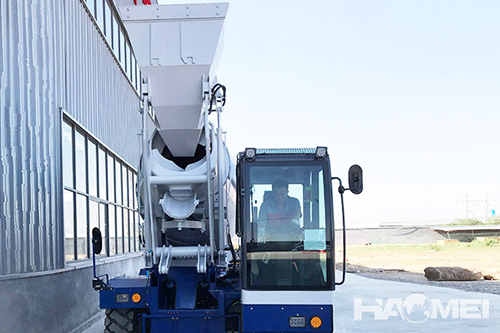

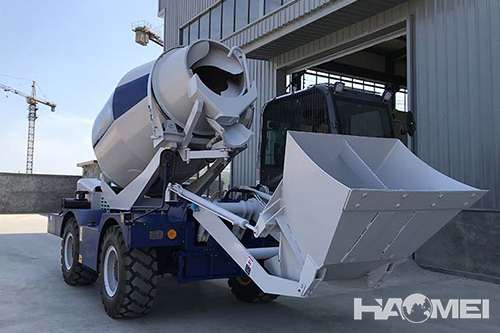

6.5m3 Self Loading Transit Mixer

Self loading transit mixers are unique machines designed to batch, mix and transport concrete. They consist of a rotating drum mounted on an operator-driven cab-mounted chassis frame fitted with a loading bucket.The operator of the self-loading concrete mixers batches and introduces the ingredients required for mixing concrete (cement, stone aggregates etc.) into the drum using the loading bucket. The drum is usually reversible type, tilt type or a combination of both. A predetermined volume of water is discharged to the drum via a water dispensing unit. The mixture is rotated at mixing speeds within the drum until the concrete discharges via a fitted chute.

Configuration of self loading mixer truck 6.5m3 are:

Equipment Model	6.5 cubic Self Loading Transit Mixer
Production Capacity	6.5 Cubic Meter/Drum
Engine Model	Weichai deutz 6105 Turbo-Charged
Rated Power	92kw//125ps
Gear Box Model	ZL-315 Power Shift Gearbox
Gear	2 Forward 2 Back
Fuel Tank	370L
Fuel consumption L / h	13.25L
Total Hydraulic System Capacity	278 Liters
Oil Tank	16 Liters
Reducer	KY07-5-J
Hydraulic Pump	Inter pump
Hydraulic Motor	SUNNY63
Water Tank	1465L
Water Supply	Time Relay
Overall Dimensions(L*W*H)	8450*3050*4830
Total Weight	12520kg
Drum Capacity	9000L
Drum rotation speed	16.5 rpm
Wheel base	2,850 mm
Max. speed	40 km/h
Max. climbing degree	45°
Min. turning radius	4,800 mm
Min. ground clearance	350 mm
Left and right track	2100mm
Sand feeding time (minutes / tank)	12

Advantages Of Self Loading Transit Mixer are:

1. Self loading concrete mixture for sale can rotate 270 degrees;
2.Self load, meter, mix and discharge;
3.Compact structure and easy movement—four wheels steering;
4. High working efficiency and less energy consumption;
5. High stirring quality and short stirring time.
6. The main hydraulic components are imported!
7. At least 5 workloads are saved per day!
8. Save electricity 100 degrees everyday without a blender!
