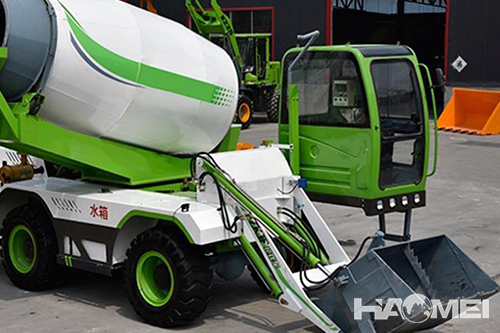

1.8 m3 Self Loading Cement Mixer
- Condition: New
- Delivery port: Qingdao or Tianjin port, China
- Payment term: L/C, T/T
- Guarantee period: 12 months
- Delivery time: 10-15 days after received deposit
- Installation time: 20days
Self loading cement mixer for sale can achieve self loading, metering, automatically add water to stir, conveying and discharging, and can finish the delivery and site construction work. It can work without power supply, because the whole machine will supply sustainable power source. In addition, it uses drum stirring system, so it has good uniformity. Haomei self loading concrete truck mixer is like a combination of present concrete mixer and concrete batching plants.
The configuration of self loading cement mixer 1.8m3 are:
| Equipment Model | 1.8 cubic self loading concrete mixer |
| Drum geometrical capacity | 2680L |
| Discharge Capacity | 1800L |
| Engine Model | Yuchai 4102 Turbo-Charged |
| Rated Power | 78kw |
| Gear box model | ZL-265 |
| Gear | 4 forward 4 back |
| Fuel tank | 63L |
| Total hydraulic system capacity | 63 liters |
| Oil tank | 16 liters |
| Reducer | HJ80-43 |
| Hydraulic Pump | FC50/40 |
| Hydraulic Motor | BM5-160 |
| Water tank | 400L |
| Water supply | Time relay |
| Overall dimensions(L*W*H) | 7300*2600*2750 |
| Wheelbase (mm) | 2615 |
| Curb Weight (kg) | 5666 |
| Drive Form | Torque converter |
| Drum rotate | 270º |
| Drum Mixing Speed (r/min) | 13 |
| Chassis Max.Speed (kn/h) | 30 |
| Maximum grade | 30º |
| Maximum turning radius (mm) | 5270 |
| Minimum ground clearance (mm) | 280 |
The advantages of Haomei self loading cement mixer truck are:
